At auto shows and large-scale equipment exhibitions, we recommend using 10mm/12mm tempered glass with aluminum ramps, with each dance floor panel supporting a load capacity of 500kg/700kg.
3D LED Dance Floor | 3D Infinity & Mirror Effects
- LK-I01 3D Infinity LED Dance Floor
- Immersive Mirror Reflection
- Recommended Combo: Colorful LED Dance Floors
- Magnetic Quick-connect, Suitable for Wedding Rentals, Nightclubs and Touring Events.
Reference price: $25.80/piece (€23) direct from the factory. The size, shape, and protection level are all customizable. We offer a 1-year warranty and free replacement within 3 months.
📦 Get Free Samples via WhatsApp！
Send us your required dance floor area, and we will calculate the panels and accessories. Online video factory verification is supported.

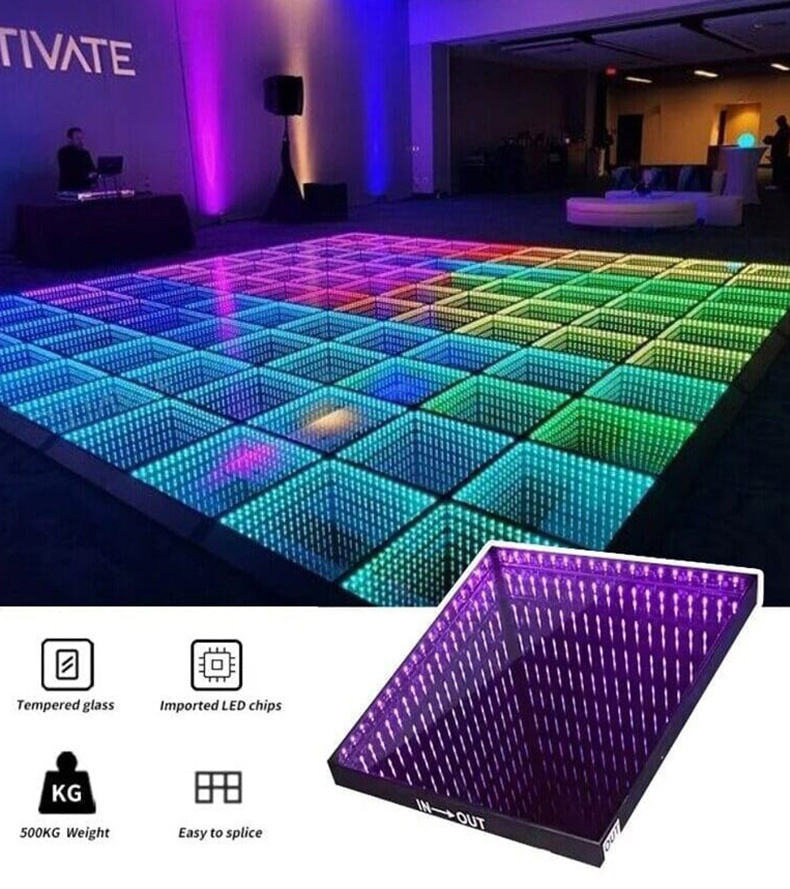

What Is a 3D LED Dance Floor?
A 3D LED dance floor combines LED lights with mirror reflections to create a deep infinity visual. Perfect for weddings, parties, DJ shows and mobile event rentals, this 3D mirror LED dance floor creates a striking centerpiece.
1m x 1m 3D Dance Floor for Large Venues
This 3d dance floor size is perfect for hotel banquet halls and large stages, providing a seamless infinity effect across a wide area.
Interactive 3D LED Floor with Motion Sensors
Our led 3d floor features built-in interactive sensors that react to movement, creating a dynamic 3D infinity experience for guests.

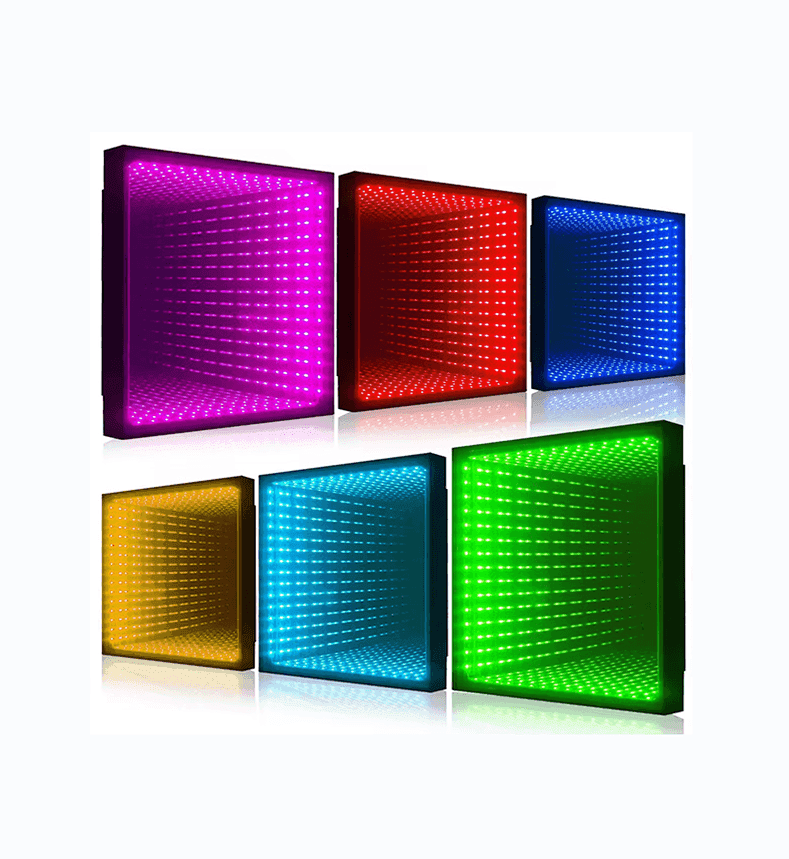

3D Visual Effects
The 3D LED dance floor features an infinity mirror effect with hundreds of preset lighting programs for different event scenes.
Colorful Rotation Animation
All panels illuminate and rotate colors simultaneously for a strong visual impact.
Lighting Chasing Animation
Pre-programmed chasing effects move light across the surface, ideal for solo or group performances.
Sound Visualization
Audio-controlled mode synchronizes light patterns to music rhythm and frequency.
Specifications of 3D LED Dance Floor
The LED dance floor is available in two sizes: 50cm and 60cm. It comes in either black or white, with black as the default color. If you need the white frame, please specify this when placing your order.
Two Standard Sizes
- A: 50 cm × 50 cm × 7 cm (approximately 19.7″ × 19.7″ × 2.8″), built-in with 60 LED beads (arranged 4 × 15).
- B: 60 cm × 60 cm × 7 cm (approximately 23.6″ × 23.6″ × 2.8″), built-in with 80 LED beads (arranged 4 × 20).
Impact-Resistant Optimization
We have conducted extensive testing and found that the most common point of damage during use is not the top surface but the tempered glass on the sides. When two LED dance floor panels are joined, the side tempered glass can easily crack from collision.
To solve this, our ABS casing is designed to be slightly longer than the tempered glass. This allows the ABS to absorb the impact. We have also given the tempered glass edges a 45° beveled and rounded treatment. These optimizations significantly increase the service life of our LED dance floors.
| Product Number | LK-I01 3D LED Dance Floor |
| Panel Size | 50 × 50 cm, 60 × 60 cm. |
| Panel Weight | 11kg (approximately 24.25 lbs) |
| Surface | 10mm tempered glass |
| Shell | ABS |
| Protection Leve | IP55-IP65 |
| LED Type | 60pcs LED Epistar SMD5050 |
| Lifespan | ≥100000 hours |
| Power | 15 watt |
| Input Voltage | AC 90-260v, 50/60Hz |
| Output Voltage | DC 12V |
| Operating Temperature Range | -50°C to 60°C (-58°F to 140°F) |
| Connection Method | Magnetic Connection |
| Control Method | Remote Control, Mobile App, Computer, DMX |
Custom 3D Infinity Dance Floor
As the original manufacturer of LED dance floor panels, we can customize patterns, shapes, sizes, and other specifications, and provide free CAD drawing design services.
Irregular Shapes & Custom Patterns
We manufacture customized irregular-shaped dance floors to fit unique venue layouts, enhancing the 3D infinity dance floor visual experience.
Factory Production & On-site Support
A live shot of our production workshop showing a customized triangular dance floor 3d model. For large-scale projects, we offer on-site installation guidance by our engineers.
Applications
LED infinity light-up dance floors can be used in bars, nightclubs, weddings, and parties, as well as in squares, parks, and commercial streets for city landmark projects.
Operating Entertainment Venues
Our LED dance floors are waterproof, so there’s no need to worry about spilled drinks. They can be easily cleaned with a damp cloth or mop.
Hosting Temporary Events
The dance floor panels feature a magnetic design for 1-second splicing, enabling quick installation, and come with mobile flight cases for convenient transportation.
Municipal construction projects
We manufacture outdoor models of LED dance floors, which can be used for municipal lighting projects in squares, parks, and other public spaces.
Commercial Spaces & Exhibitions
3D LED Dance Floor Price Guide
Price reference: Panel price varies by size, material and control mode. Shipping and battery options affect final cost. Click WhatsApp for a full quote.

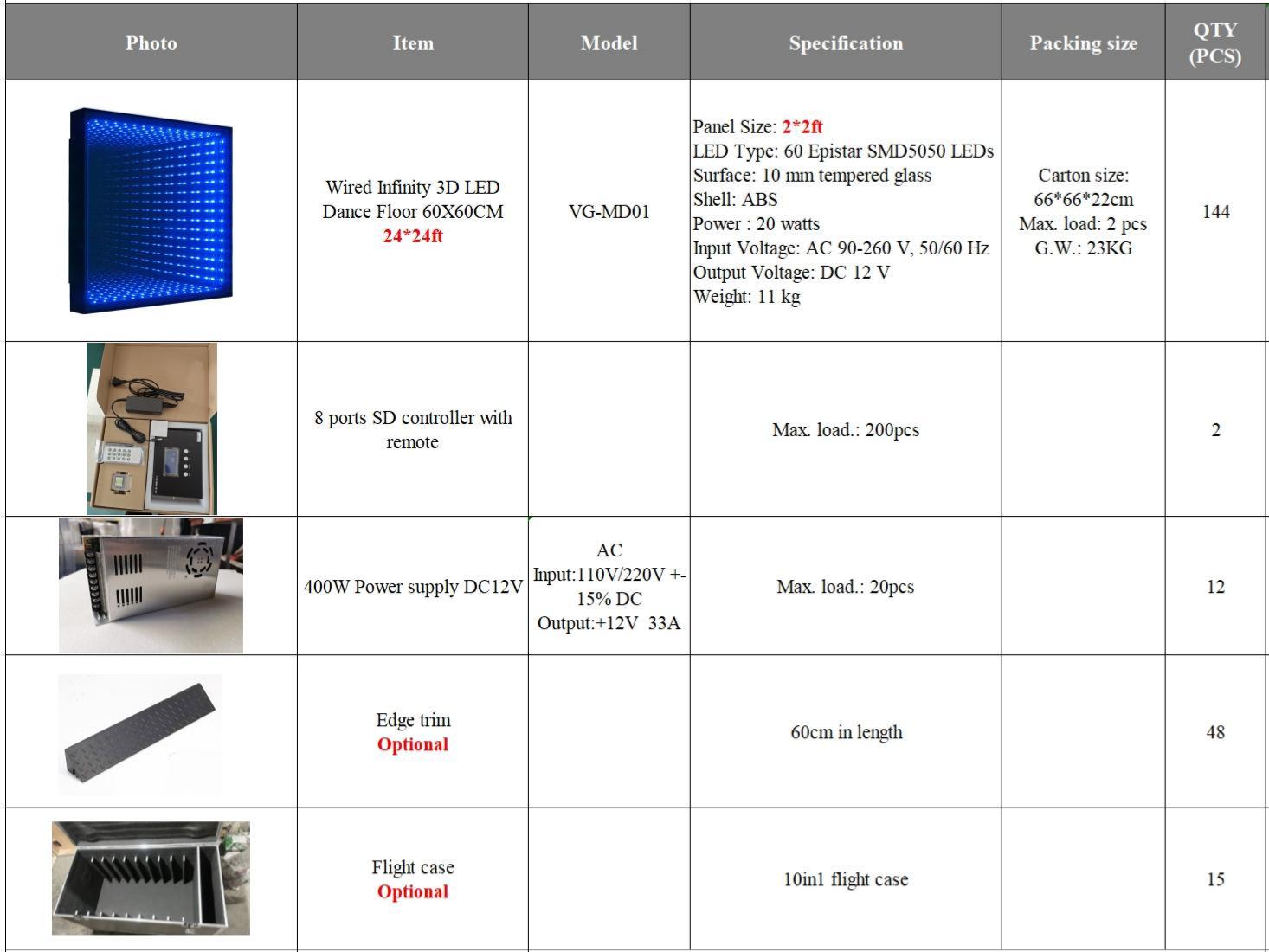

Detailed Quotation List
We prepare a detailed price list based on your use case and order volume, recommending the optimal components.
Magnet vs. Wired Connection
Magnet panels are fastest for frequent setup/teardown. Wired models have lower initial cost but need more installation time.
Shipping & Packaging
For mobile rentals choose flight cases (standard or rechargeable). We ship by sea or rail depending on cost and timeline.
Mix 3D Infinity Floor with Other Styles
The 3D Infinity Floor can be used on its own or combined with Pixel, Rainbow, or other dance floor styles to create stunning visual effects.
3D Infinity & Rainbow LED Dance Floor
Ideal for corridor decoration, this combination blends deep infinity effects with vibrant color transitions.
3D Infinity & Crystal LED Dance Floor
A popular choice for showrooms, mixing the “bottomless” mirror effect with the high-brightness crystal surface.
View more LED theme styles
Lucky Dance Floor manufactures more than 14 different styles of LED dance floors and also produces 360° photo booths, LED infinity tables, and LED infinity cabinets — all of which support personalized customization.
Double 3D LED Dance Floor LK-DI01
-
- Features dual-layer infinity visual effects
- An upgraded version of the 3D dance floor
- Designed for high-end venues
Colorful Dance Floor LK-CH01
-
- Best combination for infinity mirror models
- Full-color & gradient effects
- Optional weight-sensing color change feature
3D Starlit LED Dance Floor LK-IS01
-
- Unique starry visual depth
- Most popular starlit design
- Available in single-color and 3D starlit versions
View The Full LED Dance Floor Introduction
-
- All LED dance floor models
- How to install an LED dance floor
- LED dance floor power connection methods
Customer Cases
Our 3D LED dance floor fits many applications. We offer configuration plans to match different venues and event types.

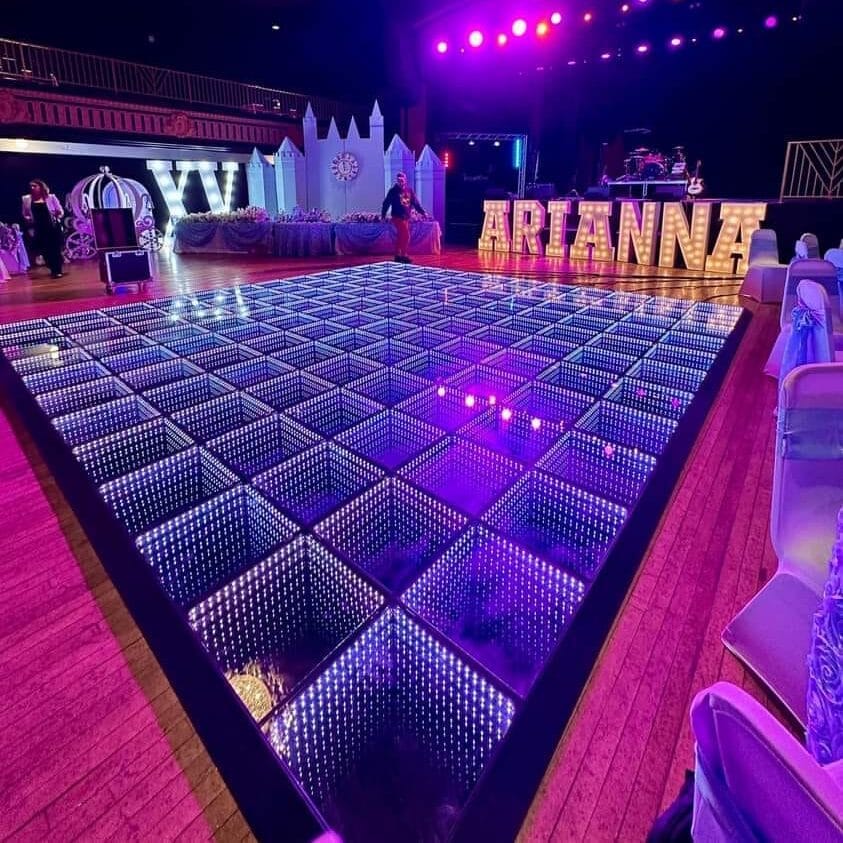

Weddings & Private Parties
Use the 3D dance floor as a visual centerpiece for ceremonies and receptions.

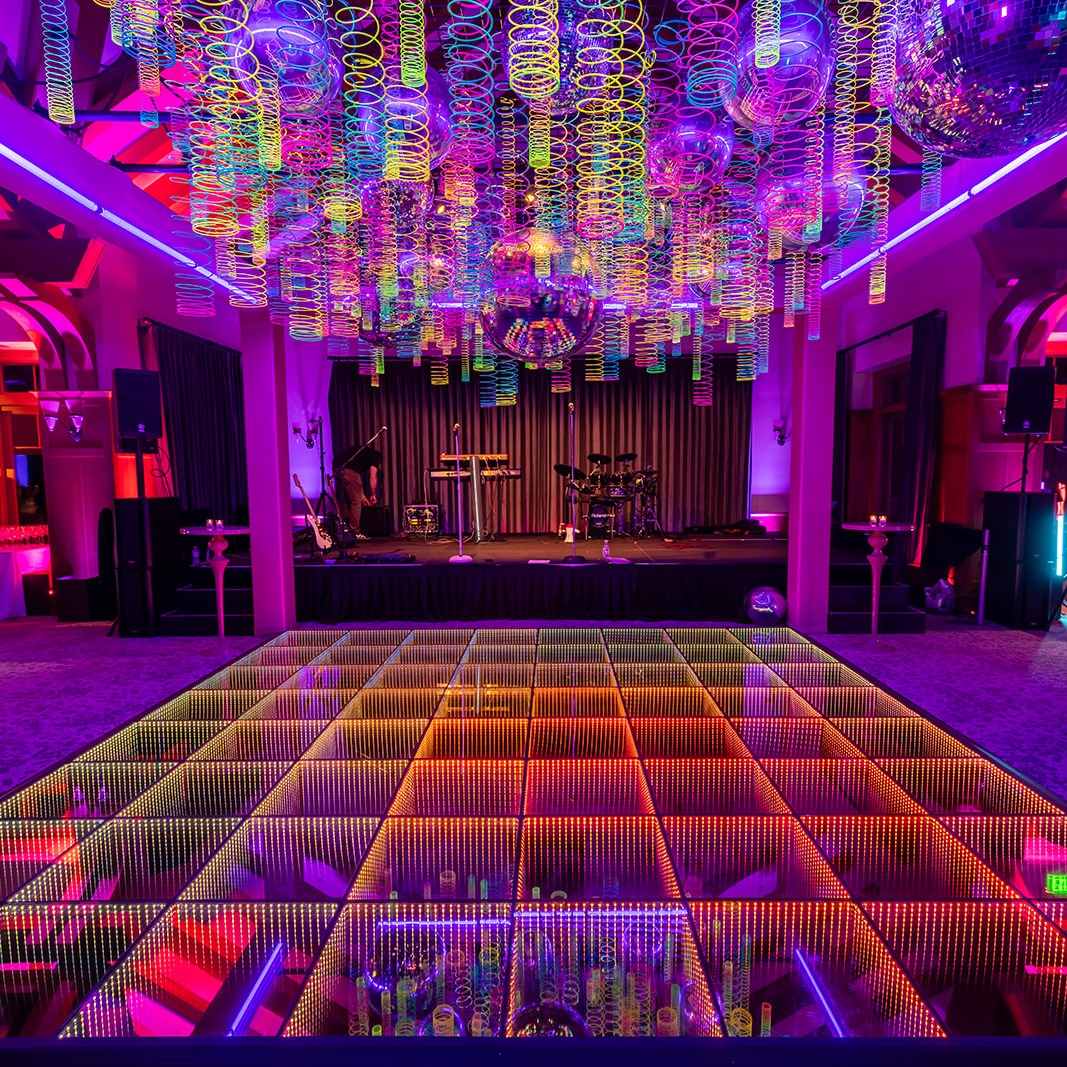

Nightclubs & Bars
Spill-resistant surface and easy cleaning for high-traffic venues.

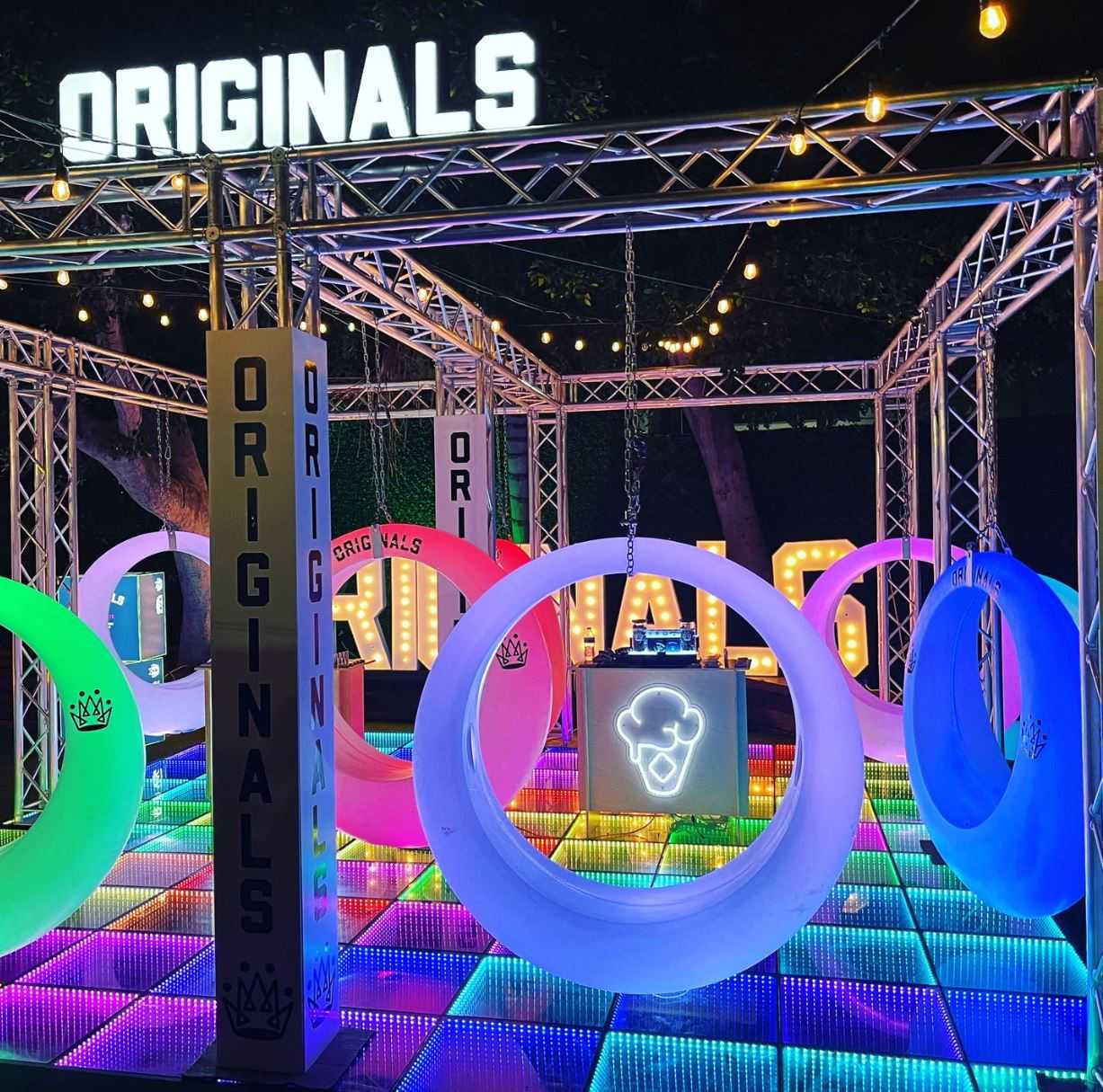

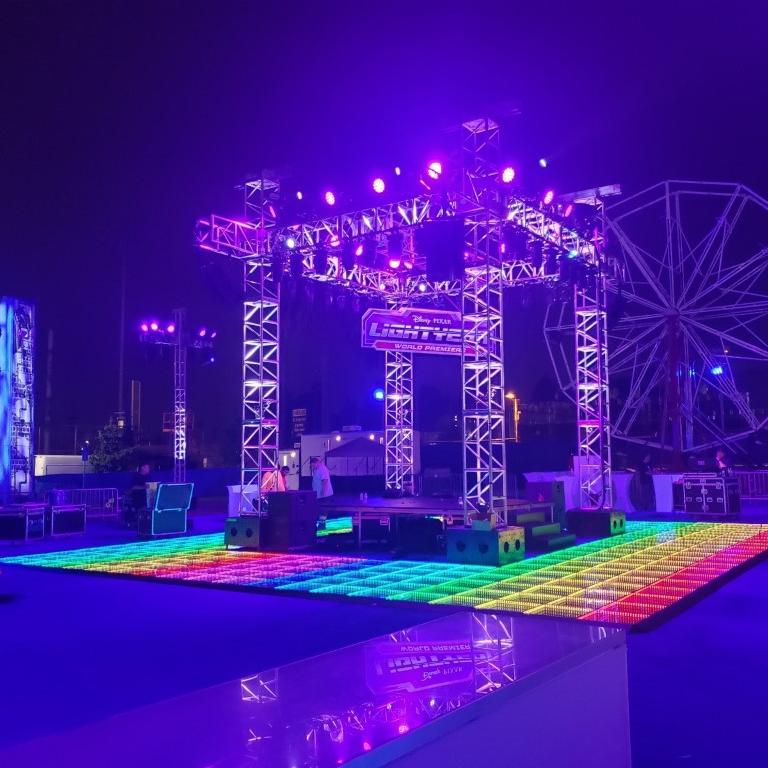

Outdoor & Temporary Events
Battery-powered options remove cable constraints for outdoor setups.
FAQ about the 3D Infinity Dance Floor
Here are 6 frequently asked questions about LED dance floors. Please contact us via WhatsApp for detailed product quotes and solutions.
How can I verify the factory's authenticity?
Our headquarters is located in Guangzhou, China. We support factory verification via WhatsApp video calls. If you visit China, you are welcome to tour our factory in person. We also participate in the GET Show lighting exhibition from time to time.
What does the LED dance floor package include?
- LED Dance Floor Panels
- Remote Control
- Power Supplies
- Edges (ABS plastic / Aluminum alloy) – sloped ramps that connect to the edges of the dance floor for a seamless transition.
- Flight Cases / Pallet / Wooden Crate – available in standard flight cases or rechargeable options.
Please note: The required accessories may vary slightly depending on the LED dance floor style.
How much does the 3D dance floor cost?
Individual 3D dance floor panels typically range from USD 23.8 to 30, depending on the model and size.
Please send us the style you are interested in or the floor area you require, and we will provide you with a detailed quotation.Based on your application scenario and budget, we will also recommend the most suitable solution.
Can light up dance floor be used for wall decoration?
Yes. We recommend the neon-style LED panels. They create a strong visual impact in restaurants, bars, nightclubs, and other entertainment venues, making them ideal for photo spots and trendy social check-in locations.
How do I install the LED dance floor?
We offer two installation options: magnetic connection and wired connection.
- Wired Connection – Each LED dance floor panel is powered by connecting its cable. This method is generally recommended for wall decorations or permanent installations.
- Magnetic Connection – Simply place the LED dance floor panels close to each other, and the magnets will automatically snap them into place for power and data transfer. This option is extremely quick and easy to set up.
What are the recommended combinations for the 3D Infinity Mirror Dance Floor?
The 3D style features an infinite visual reflection effect. It can be paired with:
- Rainbow Style – to create a balanced and colorful visual effect.
- Diamond/Crystal Style – to further enhance the sense of infinite depth.
- Starry Style – as another great option for a stunning atmosphere.
